This talk

I'll report on two projects

Formalization of the integer solutions of some Mordell equations $$y^2 = x^3 - k$$

CPP 2023

and

A formal implementation of Tate's algorithm

(forthcoming)

both projects in algebraic number theory / arithmetic geometry

Classical number theory tools

Congruences (Ancient, modern form due to Euler/Gauss 1750-1850) $$2y^2 = 4x^3 - 13$$ has no integer solutions, as the LHS is even and the RHS is odd.

Descent (Ancient, used heavily by Fermat, 1600s) $$y^2 = 2x^2$$ has no (nonzero) integer solutions, as given a solution $(x,y)$ we can show that $(x/2, y/2)$ is also an integer solution, so there cannot be a smallest one (except $(0,0)$).

Quadratic Reciprocity (Gauss, ~1800) $$2y^2 =x ^ 4- 41z^4$$ has 1 solution with $x=y=z=0$, otherwise: if $q \mid y$ then 41 is a square modulo $q$, this implies that $y$ is a square modulo 41 so that 2 is a 4th power mod 41 (QR), but this is false!

Using these sort of techniques

Laurent Thery, 2004 in Coq: $$x^2 + y^2 = p$$ has a solution for all primes $p$ that are 1 mod 4.

Delahaye, Mayero, 2005, in Coq: $$x^4 + y^4 = z^4$$ have no solutions in the non-zero integers. Also solve $$x^2 + y^ 2 = z^ 2\text{ and }xy = 2t^2.$$

Oosterhuis, 2007, in Isabelle: $$x^2 + 3y^2 = p$$ has a solution for all primes $p$ that are 1 mod 3 (also 1 mod 4 result), also non-existence of solutions to $$x^3 + y^3 = z^3 \text{ and } x^4 + y^4 = z^4.$$

Why is $y^2 = x^3 - 13$ harder?

• Diophantine equations of two variables define curves geometrically
• The genus ($\ge0$) of a curve determines the difficulty, generally the genus increases with the degree of the polynomial
• As soon as the genus $\ge 1$ we have a finite set of integral points
• The curves we look at have genus = 1, some of these have finitely many rational solutions, some infinitely many

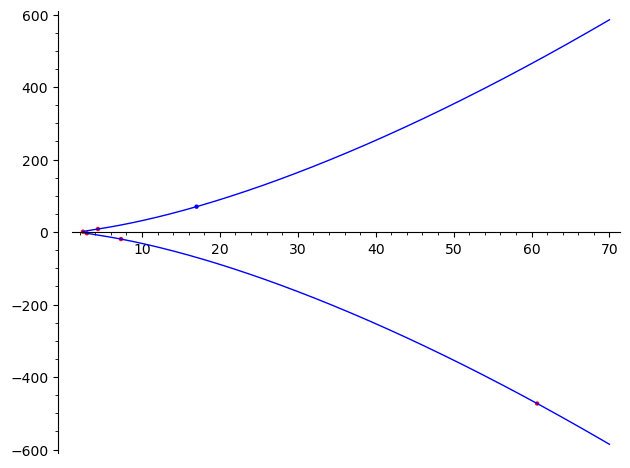

• The curve $y^2 = x^3 - 13$ has infinitely many rational points

This type of equation is known as a Mordell equation, studied by mordell in early 1900s,

The argument

If $x,y$ satisfy $y^2 = x^3 - 13$ then $(y + \sqrt{-13})(y - \sqrt{-13}) = x^3$, we can check that

$$y + \sqrt{-13} \text{ and }y - \sqrt{-13} \text{ are coprime.}$$

If this implies that $$y + \sqrt{-13} \text{ and }y - \sqrt{-13} \text{ are both cubes}$$ then we can conclude that $$y + \sqrt{-13} = (a + b \sqrt{-13})^3$$ $$= (a^3 - 39 ab^2) + (3a^2b - 13b^3)\sqrt{-13}$$ $$= a(a^2 - 39 b^2) + b(3a^2 - 13b^2)\sqrt{-13}$$ $$\implies b = \pm 1$$ $$\implies 1 = \pm(3a^2 - 13)$$ $$\implies a = \pm 2, b=-1 \implies y = \pm70, x=17$$

When do cubes only factor into cubes?

In the integers it is almost true that if $$x,y \text{ are coprime and }xy = z^n$$ then there are some $x',y'$ such that $$x = x'^n,\,y = y'^n$$ the only issue is $\pm1$.

$$(-4)(-9) = 36 = 6^2$$ but neither $-4$, $-9$, is literally a square.

In number rings we also have issues: Observe that $$(6 + \sqrt{-13}) (2 - 3 \sqrt{-13}) = 51 - 16\sqrt{-13} = (8 - \sqrt{-13})^2$$ but $6 + \sqrt{-13}$ and $2 - 3 \sqrt{-13}$ are coprime but both are not squares in $\mathbf{Z}[\sqrt{-13}]$!

When do cubes only factor into cubes?

Problem: When does $$r \cdot s = t ^ 3 \implies r = t_1^3 \text{ and } s = t_2^3?$$ in a number ring

The theory of class groups of number fields is a key concept in number theory, it controls this sort of factorization. For a number field $K$ the definition of the ideal class group is $$\operatorname{Cl}(K) := \{I \text{ nonzero ideal of }\mathcal O_K\}/ I \sim J \iff xI = yJ \text{ for some } x,y \in \mathcal O_K$$

this forms a group under multiplication of ideals, elements are called ideal classes.

Here every principal ideal is equivalent to the ideal $(1)$ (and this is an iff).

The advantage of using ideals instead of elements is that we have an analogue of unique factorization into primes for ideals of a Dedekind domain.

In the previous example: $$(6 + \sqrt{-13}) (2 - 3 \sqrt{-13}) = (8 - \sqrt{-13})^2$$ this factors on the level of ideals as $$(7, 6 + \sqrt{-13})^2 (11, 2 - 3 \sqrt{-13})^2 = (8 - \sqrt{-13})^2 = (7, 6 + \sqrt{-13})^2 (11, 2 - 3 \sqrt{-13})^2$$

But the ideals $(7, 6 + \sqrt{-13}), (11, 2 - 3 \sqrt{-13})$ are non-principal, non-trivial in the class group.

Using the class group

The upshot of this is that we have a finite abelian group $\operatorname{Cl}(K)$ such that

$$\gcd (n , \#\operatorname{Cl}(K))=1 \implies \exists u,v\in \mathcal O_K^\times, r \cdot s = t ^ n \implies r = u t_1^n \text{ and } s = v t_2^n$$

If we can compute the class group and the unit group (modulo $n$th powers) explicitly we can push the previous proof through.

The definition of, and finite abelian group structure of the class group was formalized in Lean by Baanen, Dahmen, Ashvni (Narayanan), Nuccio 2021.

Note that the definition is inherently noncomputable, without a given set of a generators there is no guarentee that all elements have been found. Checking that elements are non-trivial is also hard (and an interesting problem to try and certify), but at worst only makes your life harder later.

The unit group in the case of $\mathbf Q(\sqrt{-d})$ is fairly easy to calculate, using the norm, in all cases it has order a power of 2, so doesn't impact whether things are cubes or not.

Proof versus calculation

Often proofs require explicit calculation one can also state general results, but number theorists are interested in classifying single cases, does it ever happen that the difference between the area of an integer sided square and the volume of an integer sided cube equals 13?

Bounding class groups

Need to calculate the size of the class group, to check that it is not divisible by 3

Do this in two steps, bounding/listing the possible generators, and checking their order/relations.

Given a list of possible generators we can calculate the full group by checking whether various combinations of the generators are trivial or not.

Verifying that a particular ideal is trivial in the class group is easy, just exhibit a single generator.

To show that an ideal is not principal we make use of the norm, if an ideal $I = (x)$ then $\operatorname{Nm}(I) = \operatorname{Nm}(x)$, so if there are no solutions $x$ to this equation the ideal is not principal. In our case this comes down to solving things like:

$$x^2 + 13 y^2 = 2$$ which can be resolved via elementary methods.

The usual bound

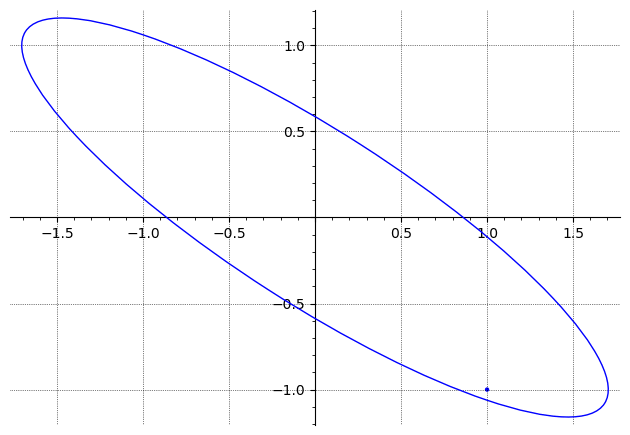

Theorem (Minkowski): Every class in the ideal class group of $K$ contains an integral ideal of norm not exceeding Minkowski's bound

$$M_{K}={\sqrt {|D|}}\left({\frac {4}{\pi }}\right)^{{r_{2}}}{\frac {n!}{n^{n}}}$$

the key ingredient of this theorem is Minkowski's (fundamental) theorem, on lattice vectors inside convex symmetric bodies:

This ingredient has been formalized in Isabelle + other HOL style proof assistants, and also in Lean!

But the proof still involves a bit of work, and a lower tech result gives something more useful in our case.

The method we use

We actually compute these groups for a handful of quadratic fields fully, which is of independent interest, we use:

theorem exists_mk0_eq_mk0' [is_dedekind_domain S] (I : (ideal S)⁰) (M : finset R) (hM : ∀ m ∈ M, algebra_map R S m ≠ 0)
  (hex : ∀ (a : S) {b : S}, b ≠ 0 → (∃ (q : S) (r : R) (H : r ∈ M),
              abv (algebra.norm R (r • a - q * b)) < abv (algebra.norm R b))) :
  ∃ (J : (ideal S)⁰), class_group.mk0 I = class_group.mk0 J ∧ algebra_map _ _ (∏ m in M, m) ∈ (J : ideal S) := ...

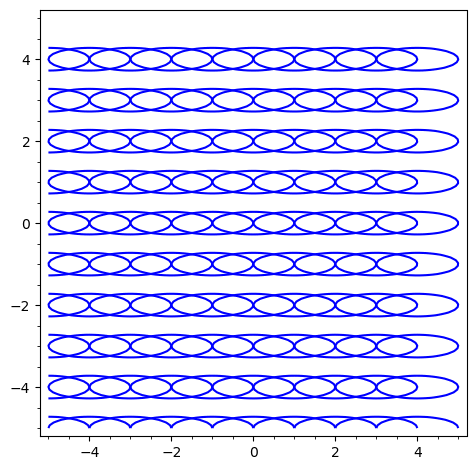

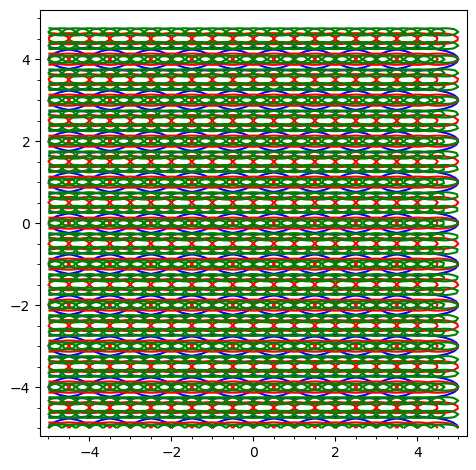

If you can find a set of denominators $\{d_i\}$ such that every element of the number field has difference from some other element with denominator in $\{d_i\}$ of norm less than $1$ then every element of the class group contains $\prod_{i} d_i$.

This reduces the problem of finding generators of the class group to that of covering the number field by lattice centered "balls"

Calculational tactics

We need to do lots of calculations in rings like $\mathbf Z [\sqrt{-13}]$ (but also aim at more general examples like $\mathbf Z [\sqrt[3]{2}]$)

Want to explicitly evaluate expressions like $(1 + \sqrt{-13}) (2 - 2 \sqrt{-13})$ at many points in the proof and calculation of class (and unit) groups.

• One way: expand and use the simplifier to reduce high powers that can be expressed with expressions with smaller exponents
• Our initial approach: use a custom type for quadratic rings $R[\alpha]$ ($\alpha^2 + m \alpha + n = 0$), represented as (named) pairs $(a,b) = a + b \alpha$. Then extensionality and simplification reduces to goals over the integers
• Something more versatile: Rings like $\mathbf Z [\sqrt{-13}]$ are additively isomorphic to $\mathbf Z^2$, but with a multiplication that sends

  $$(0,1)^2 = (-13,0)$$ As the multiplication is linear we can define it via a matrix on the standard basis (the times table of the ring). We introduce a tactic that uses the times table to do explicit calculations quickly

  example (a b c d : ℤ) : (a + b * √2 + c * √3 + d * √2 * √3 : sqrt_2_sqrt_3) *
                          (a - b * √2 + c * √3 - d * √2 * √3 : sqrt_2_sqrt_3) *
                          (a + b * √2 - c * √3 - d * √2 * √3 : sqrt_2_sqrt_3) *
                          (a - b * √2 - c * √3 + d * √2 * √3 : sqrt_2_sqrt_3) =
    a^4 - 4*a^2*b^2 + 4*b^4 - 6*a^2*c^2 - 12*b^2*c^2 + 9*c^4 + 48*a*b*c*d - 12*a^2*d^2 - 24*b^2*d^2 - 36*c^2*d^2 + 36*d^4 :=
  begin
    apply sqrt_2_sqrt_3.times_table.ext (λ k, _),
    fin_cases k; times_table,
  end

Connection to computer algebra systems

Have been considered (often) before

• Harrison-Théry 1997, HOL + Maple

• Lewis-Wu 2021, Lean + Mathematica

We propose a prototypical link from Lean to SageMath (free OSS)

This is designed to be robust, connecting to Sage on the user's computer or via the web (c.f. polyrith)

Rather than ad hoc we want a system that can be extended in future with less effort (meta-meta-programming).

We can use this to implement tactics to prove ideal equalities and to factor ideals and polynomials, that call Sage to do some calcuations whose results are then verified.

meta def replace_certified_sage_equality
    (matcher : expr → tactic bool)
    (reify_type : Type∗ )
    (reify : expr → tactic reify_type)
    (sage_input : reify_type → tactic string)
    (output_type : Type∗ )
    [has_from_sage output_type]
    (convert_output : output_type → tactic expr)
    (validator : expr → expr → tactic expr)
    (name : string)
    (wit : parse (tk "with" ∗ > pexpr)?) :
    tactic unit

Project 2: Tate's Algorithm

With Sacha Huriot-Tattegrain and Sander Dahmen

Tate's algorithm concerns, elliptic curves: $$y^2 + a_1 xy + a_3 y = x^3 + a_2 x^2 + a_4 x + a_6$$ with coefficients in a discrete valuation ring ($v(ab) = v(a) + v(b), v(a+b) \ge \max(v(a), v(b))$)

It essentially computes invariants of a nice scheme theoretic model of the curve.

Much of the work involves making changes of variables $(x,y)\mapsto(ux + r, uy + sx + t)$ to ensure that the coefficients $a_i$ (or various polynomials in them $b_2,b_4,b_6,b_8$ and $c_4,c_6$) have sufficiently high valuation.

Tate's algorithm:

• is recursive
• 10 main steps
• one recursive subprocedure
• explained over 5 pages originally by Tate, in a nice style (but with some details skipped!)
• mostly solved the original problem, but variants are still proposed and explored in modern research, including generalizations to higher genus curves ($y^2 = f(x)$) which are an order of magnitude more complex again https://wstein.org/Tables/antwerp/tate/tate.pdf#page=14

Motivation

• Bridging the gap between ITPs and computer algebra

• Checking how fast Lean 4 compiled code can be on a complex mathematical algorithm
• Implementing a very generic version of the algorithm, with assumptions clearly stated
• Validating properties of the algorithm / quantities computed, e.g.

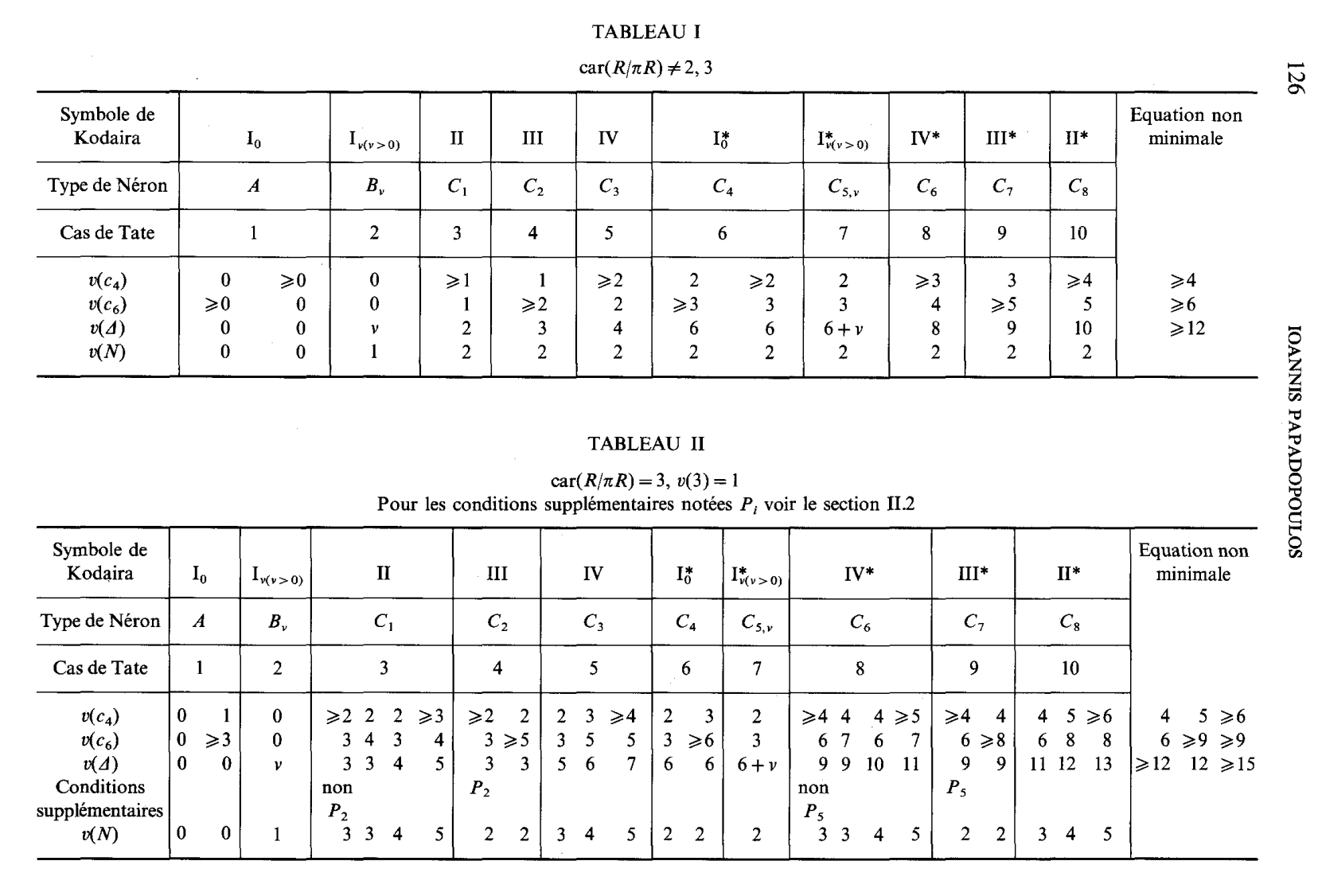

  Papadopoulos I. Sur la classification de Néron des courbes elliptiques en caractéristique résiduelle 2 et 3

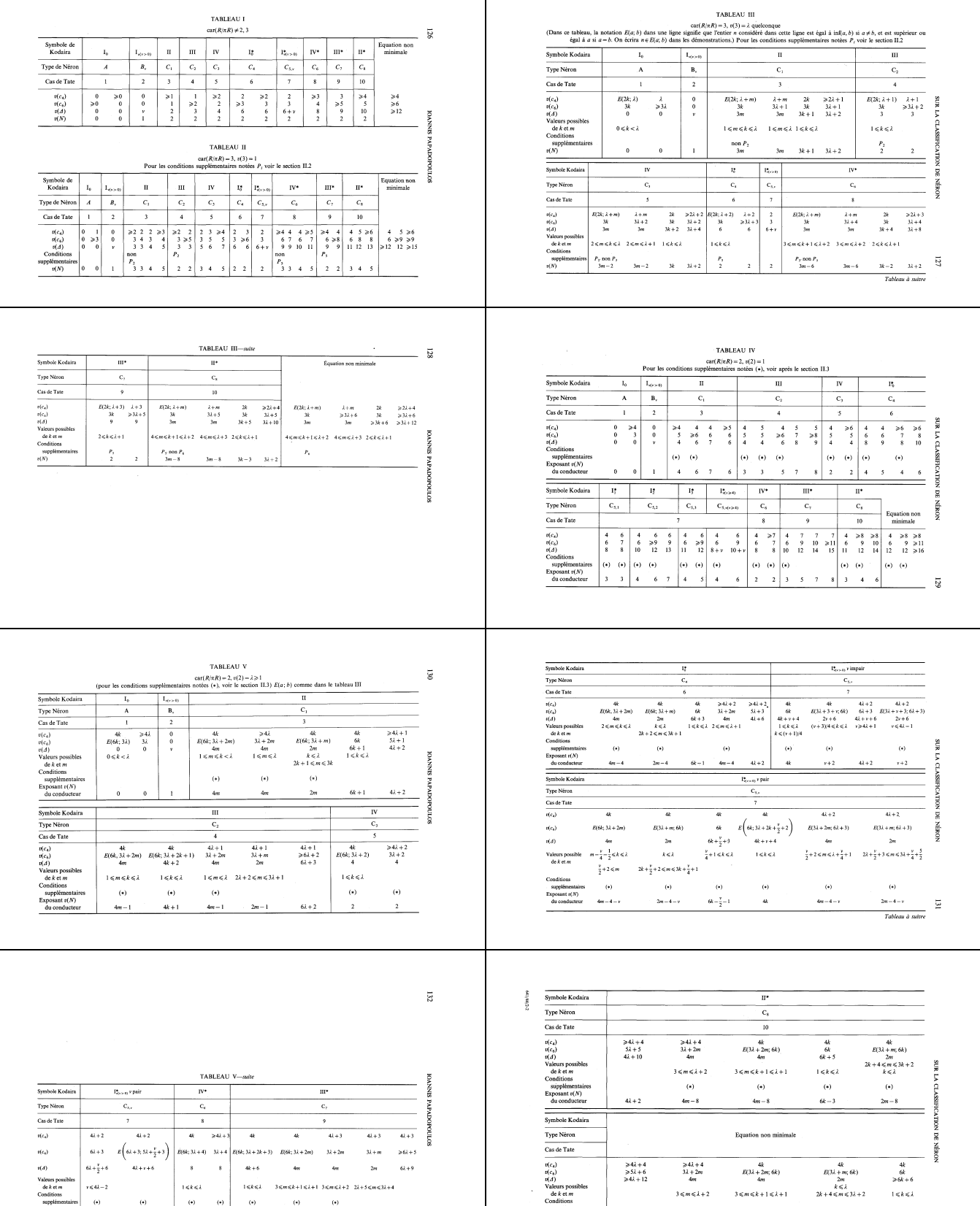

The tables of results go on for several pages, and the proofs many more (34 pages in the published version)

The contents of these tables is used in current research and proofs surrounding the generalized Fermat equation.

This is the sort of mathematics that formalization may actually make clearer, detailed analysis of the behaviour of a complicated procedure under different assumptions on the input.

What does it mean to formalize an algorithm?

• The gold standard is to implement an algorithm in a proof assistant and prove it computes the same function as a natural "mathematical" definition in the system (we do not do this)

• Another possibility is simply to implement the algorithm as described in a paper, and verify that its properties agree with what is claimed in theory. Here we use the algorithm itself as the definition of the function that it computes.

By implementing the algorithm in a descriptive, rather than low level way we still gain some confidence in correctness. We can prove substeps and transformation rules are correct.

By verifying enough properties the algorithm can sometimes be seen, on paper, to actually implement the desired function, even before the actual definition can be formalized.

Results of the formalization project

We have formalized two versions of the algorithm:

• an initial version over the integers, covering the most common application
• a general version over an arbitrary ring with discrete valuation and some chosen functions to reduce valuations and pick small representatives for the residue ring

Both are fast enough to run in practice (even without lots of optimization)

The project began with Sacha's internship at the VU ~1.5 years ago, so we were early users of Lean 4. Several bugs in Lean4/Mathlib4 tactics and interfaces found and many fixed, and even a very subtle one in the compiler core were discovered (hit in 0.0000001% of examples).

Current goals:

• Working on finishing some small subproofs along the way (porting from mathlib 3->4)
• Working on implementing other rings where we can run the algorithm (e.g. number fields, function fields).

  This may be the first ever implementation of the algorithm that runs on such rings

• Verifying more properties of the algorithm such as invariance under isomorphic input models
• Verifying some versions of the above tables

Challenges faced

The algorithm itself is long and complicated in the geneneral case, proof of termination is via an a priori bounded quantity that increases every time the subprocedure runs twice.

Many goals combining known inequalities on valuations of our invaraints to obtain new ones

R: Type u
inst✝: CommRing R
inst: IsDomain R
p: R
evr: EnatValRing p
e: Model R
h1: v evr.valtn e.a1 ≥ 1
h2: v evr.valtn e.a2 ≥ 2
⊢ v evr.valtn (e.a1 * e.a1 + 4 * e.a2) ≥ 2

In order to formalize this cleanly we need specific api around, as well as decision procedures for the ordered semiring $ℕ∪∞$

We simply do cases on each variable, simplifying inequalities that contain infinity to simpler statements and recursing, eventually reching a state where existing automation applies.
This still requires a non-trivial implementation to get this right.

Alternative approach using metavariables and Aesop was also promising.

Elinarith

lemma v_discr_of_v_ai {p : R} {q : ℕ} (valp : SurjVal p) (e : ValidModel R) (hq : q > 1)
  (h1 : valp e.a1 ≥ 1) (h2 : valp e.a2 = 1) (h3 : valp e.a3 ≥ q)
  (h4 : valp e.a4 ≥ q + 1) (h6 : valp e.a6 ≥ 2 * q) :
  valp e.discr ≥ 2 * q + 3 := by
  have h2' : valp e.b2 ≥ 1 := v_b2_of_v_a1_a2 valp e h1 h2
  have h4' : valp e.b4 ≥ q + 1 := v_b4_of_v_a1_a3_a4 valp e h1 h3 h4
  have h6' : valp e.b6 ≥ 2 * q := v_b6_of_v_a3_a6 valp e h3 h6
  have h8' : valp e.b8 ≥ 2 * q + 1 := v_b8_of_v_ai valp e h1 h2 h3 h4 h6
  apply_rules [val_add_ge_of_ge, val_sub_ge_of_ge] <;>
  . simp
    elinarith

if done by hand we end up with a 50 line argument here!

More generally there is in fact: Effective Quantifier Elimination for Presburger Arithmetic with Infinity, Aless Lasaruk and Thomas Sturm

Similarly we would benefit from a tactic for working with ring expressions modulo $p$ or modulo given relations.

We still did a lot of experimentation and copy-pasting with computer algebra systems to write down the necessary transformations in general.

Thesis: more meta-meta-programming needed to make it easier for the formalizer to implement such tactics.

Verification of some data in the LMFDB

• The LMFDB is a large online database and website hosting data relevant to number theorists, such as number fields, elliptic and genus 2 curves, L-functions, modular forms, groups, abelian varieties, Artin representations, local fields, ...

http://lmfdb.xyz/EllipticCurve/Q/14/a/1

• Data is often ordered by some natural invariants, and complete up to a certain bound.
• Correctness and completeness is paramount, and strived for at all times, data added is often computed by independent implementations for cross checking, at for some of the data.
• Using either of our implementations we can confirm all 13,178,234 entries of local data for 3,824,372 elliptic curves over $\mathbf Q$ currently in the LMFDB.
• Next, elliptic curves over number fields!

Thanks!

For the invitation, and you for listening!

Questions?

https://github.com/lean-forward/class-group-and-mordell-equation

https://github.com/KisaraBlue/ec-tate-lean

Chalkboard

code for plots

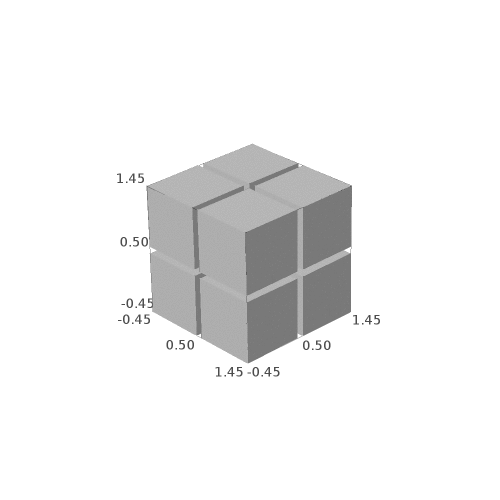

from sage.plot.plot3d.shapes import *
S = 0
N = 6
for x in range(N):
    for y in range(N):
        for z in range(N):
            if y == 0 and z <= N - 2 and x <= N - 2:
                continue
            S += Box([.49,.49,.49], color='lightgray', alpha=1).translate(x,y,z)
S.scale(.1,.1,.1).show()

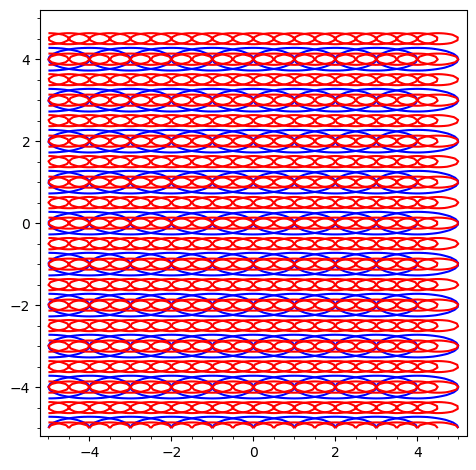

sage: S=points([])
....: for a in srange(-5,5):
....:     for b in srange(-5,5):
....:          S += implicit_plot(equify((x-a)^2 +13 * (y-b)^2 < 1), (-5,5), (-5,5))
....:
sage:
....: for a in srange(-10,10):
....:     for b in srange(-10,10):
....:          S += implicit_plot(equify((2*x-a)^2 +13 * (2*y-b)^2 < 1), (-5,5), (-5,5),color="red")
....:
sage:
....: for a in srange(-15,15):
....:     for b in srange(-15,15):
....:          S += implicit_plot(equify((3*x-a)^2 +13 * (3*y-b)^2 < 1), (-5,5), (-5,5),color="green")
S
sage: S
Launched png viewer for Graphics object consisting of 1400 graphics primitives
sage: S=points([])
....: for a in srange(-5,5):
....:     for b in srange(-5,5):
....:          S += implicit_plot(equify((x-a)^2 +13 * (y-b)^2 < 1), (-5,5), (-5,5))
....:
sage: S
Launched png viewer for Graphics object consisting of 100 graphics primitives
sage:
....: for a in srange(-10,10):
....:     for b in srange(-10,10):
....:          S += implicit_plot(equify((2*x-a)^2 +13 * (2*y-b)^2 < 1), (-5,5), (-5,5),color="red")
....:
S
sage: S

sage: from sage.plot.plot3d.shapes import *
....: def t(s,N=17, M=70):
....:     S = 0
....:     for x in range(N):
....:         for y in range(N):
....:             for z in range(N):
....:                 boxpos = (1-s)*vector([x,y,z]) + s*vector([(x + N*y + N^2*z) % M,(x+  N*y + N^2*z)//M,0])
....:                 S += Box([.45,.45,.45], color='lightgray',axis=False).translate(boxpos)
....:     return S
....: animate([t(i) for i in srange(0,1.05, 0.1)])
Launched gif viewer for Animation with 11 frames
